Trex Signature® Railing
A customised complement to modern decking. Effortless style, exceptional strength—that’s Trex Signature Railing.
Durable & Design-Forward
Transform everyday spaces into an escape with Trex. Low-maintenance railings from the Trex Signature add a touch of modern sophistication to any view.
High Performance
Imagine top-tier durability coupled with the refined beauty of modern aluminium. Our four contemporary Trex Signature options feature powder-coated aluminium rails that resist fading and corrosion, backed by our 50-year Limited Warranty.
Customised, Effortless Style
Every deck deserves a signature. Through the use of aluminium, mesh, rod, or glass panels, you can add a contemporary edge to any outdoor space. Got a great view? Consider curving your rails to mimic the sweeps of the garden below. And entertainers, take note: wide, beverage-ready cocktail railing may just be the ideal choice for you.
Trex Signature® Railing
Trex Signature Railing is available in a variety of colours and configurations. Choose from traditional vertical aluminium balusters, clean and contemporary glass, industrial mesh or horizontal rod rails to frame the view. Multiple options available.
-
Infill Options
-
Posts & Post Components
-
Rails, Balusters & Infill Specs
-
Accessories and Kits

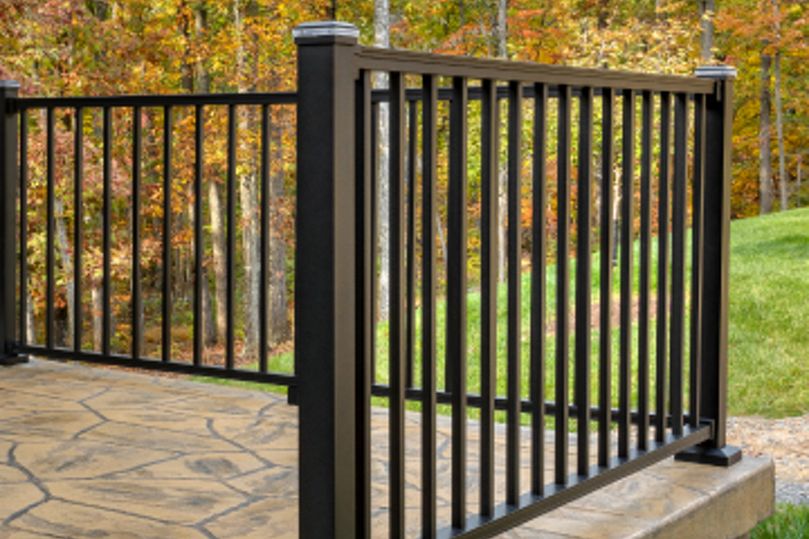

Aluminium Railing
Signature Aluminium railing is available in two heights and three lengths. The traditional vertical posts can be customised using aluminium or composite posts.
Download our Railing Guide to learn more.
Aluminium Post with Cap & Skirt
Aluminium posts can only be used with the Trex Signature® line.
2.5 inches X 2.5 inches
Actual Dimensions
37 inches Post - Horizontal: 2.5 inches x 2.5 inches x 37 inches (63 mm x 63 mm x 939 mm)
43 inches Post - Horizontal: 2.5 inches x 2.5 inches x 43 inches (63 mm x 63 mm x 109 cm)
53 inches Post – Stair (cut-to-length): 2.5 inches x 2.5 inches x 53 inches (63 mm x 63 mm x 134 cm)
Aluminium Crossover Post
2.5 inches X 2.5 inches
Actual Dimensions
Aluminium posts can only be used with the Trex Signature® line.
36 inches Crossover Post – Horizontal (includes crossover bracket): 2.5 inches x 2.5 inches x 36 inches (63 mm x 63 mm x 914 mm)
42 inches Crossover Post – Horizontal (includes crossover bracket): 2.5 inches x 2.5 inches x 42 inches (63 mm x 63 mm x 106 cm)
Aluminium Joist Mount Post
Actual External Dimensions of Insert: 3.75 inches X 3.75 inches X 7 inches
For use with 4x4 Composite post sleeve. Use with all Trex railing heights.
63 inches Aluminium post (cut-to-length)
Aluminium inserts with set screws
1/2 inches HG Bolts, washers and nuts (not pictured)
Bolt spacing template
Aluminium Surface Mount Post
Actual External Dimensions of Insert: 3.75 inches X 3.75 inches X 7 inches
Can be used as an alternative to a traditional timber post under the post sleeve. Designed to be used on either decks or concrete surfaces.
Aluminium inserts with set screws
2.5 inches IRC-compliant aluminium post with base
Aluminium Surface Mount Post Hardware
Designed specifically to connect the 36 inches or 42 inches Trex Surface Mount Post to a timber substructure.
Includes hardware for 2.5 inches Trex Signature surface mount psts, 1 aluminium backer plate, 4 HG carriage bolts and 4 HG washers and nuts.
#3: Stair–rail Kit w/Round Or Square Balusters: Top Rail, Bottom Rail, Round Or Square Balusters, Mounting & Support Hardware
Available in 6’ or 8’ lengths and 36” or 42” Rail height for horizontal and stair applications.
Includes:
Top Rail
Bottom Rail
Square Balusters
Mounting & Support Hardware
Actual Dimensions
6’ x 36”: 72” x 36” (182 cm x 914mm)
8’ x 36”: 96” x 36” (243 cm x 914mm)
6’ x 42”: 72” x 42” (182 cm x 106 cm)
#3: Horizontal – Rail Kit w/Round Or Square Balusters: Top Rail, Bottom Rail, Square Or Round Balusters, Mounting & Support Hardware
Available in 6’ or 8’ lengths and 36” or 42” Rail height for horizontal and stair applications.
Includes
Top Rail
Bottom Rail
Round Balusters
Mounting & Support Hardware
Actual Dimensions
6’ x 36”: 72” x 36” (182 cm x 914 mm)
8’ x 36”: 96” x 36” (243 cm x 914 mm)
6’ x 42”: 72” x 42” (182 cm x 106 cm)
8’ x 42”: 96” x 42” (243 cm x 106 cm)
Trex Signature® Railing Panel
Available in 6’ or 8’ lengths and 36” or 42” Rail height for horizontal applications. Only offered with square aluminium balusters.
Includes
1 Pallet of Trex Signature® Railing Panels (20 panels)
Trex Signature® Railing Mounting Hardware must be ordered separately.
Actual Dimensions
6’ x 36”: 72” x 36” (182 cm x 914 mm)
8’ x 36”: 96” x 36” (243 cm x 914 mm)
6’ x 42”: 72” x 42” (182 cm x 106 cm)
8’ x 42”: 96” x 42” (243 cm x 106 cm)
Fixed Bracket (4-pack) – Horizontal
Includes
Qty (2) Fixed Top Rail Bracket and Cover–Horizontal
Qty (2) Fixed Bottom Rail Bracket and Cover–Horizontal
Qty (1) Fastener Pack
Fixed Bracket (4-pack) – Stair
Includes
Qty (1) Fixed Top Rail Bracket 1 and Cover–Stair
Qty (1) Fixed Top Rail Bracket 2 and Cover–Stair
Qty (1) Fixed Bottom Rail Bracket 1 and Cover–Stair
Qty (1) Fixed Bottom Rail Bracket 2 and Cover–Stair
Qty (1) Fastener Pack
Swivel Crossover Bracket Kit – Stair
Includes
Qty (1) Swivel Crossover Bracket–Stair
Qty (2) Post to Bracket Fasteners
Swivel Bracket – Horizontal
Includes
Qty (1) Swivel Top Rail Bracket and Cover–Horizontal
Qty (1) Swivel Bottom Rail Bracket and Cover–Horizontal
Qty (2) Fastener Covers
Qty (1) Fastener Pack
Swivel Bracket – Stair
Includes
Qty (1) Swivel Top Rail Bracket and Cover–Stair
Qty (1) Swivel Bottom Rail Bracket and Cover–Stair
Qty (2) Fastener Covers
Qty (1) Fastener Pack
Compound Swivel Bracket – Stair
Includes
Qty (1) Compound Swivel Top Rail Bracket and Cover–Stair
Qty (1) Compound Swivel Bottom Rail Bracket and Cover–Stair
Qty (2) Fastener Covers
Qty (1) Fastener Pack
Aluminium Footblock
Includes
Qty (1) Footblock
Qty (1) Footblock Anchor and fastener
