Minimalist style. Maximum strength.

Reveal is aluminium railing, a unique material for Trex® (further evidence that we never stop innovating) and one that enables unexpected applications. It easily affixes to hardscapes like stone patios, withstands the rigours of commercial settings like public plazas and feels right at home along a string of tidy condo units. That said, it’s hallmark Trex, with a sleek-yet-sturdy construction and near-zero maintenance. And because it’s so strong, its slender profile stays out of the way of your most beautiful views making Reveal perfect for a sleek, contemporary aesthetic in any setting.

Trex Reveal aluminium railing and Trex Fascia create curved designs for a dramatic outdoor space
High Performance
  • Aluminium possesses unparalleled strength with minimal geometry
  • Powder coating allows the aluminium to retain colour and resist corrosion
  • Washes clean with soap and water for low maintenance
  • Offered with an array of bracket options for easy installation
Trex railing product lines
Perennial Beauty
  • Increases visibility to maximize scenic views
  • Monochromatic design works with all types of projects
  • Two baluster options (square and round) and two post options (aluminium posts and composite post sleeves) available
  • Over-the-post option creates a continuously graspable handrail
Trex Reveal aluminium deck rail in Charcoal Black with Trex rail posts in dark brown provides an elegant entrance to an outdoor space.
Trex Through & Through
  • Compatible with all Trex decking lines–not to mention stone patios, concrete porches and more
  • Backed by the Trex Reveal Railing Limited Warranty
  • Aluminum is a 100% renewable resource

Reveal Components

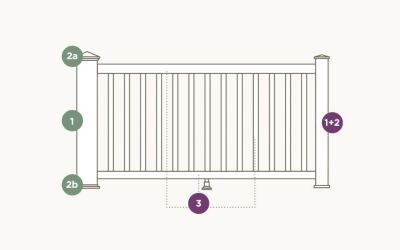

Reveal is a 3-step process. Choose Reveal aluminium posts (which include a cap and skirt) for steps 1 & 2, and pair with a rail and baluster kit (step 3). OR Choose Trex composite post sleeves, caps and skirts for steps 1 & 2, and pair with a Reveal rail & baluster kit (step 3)

1 + 2 Aluminium Post with Cap & Skirt
2.5” x 2.5”
Actual dimensions
  • 37” Post - Horizontal: 2.5” x 2.5” x 37” (64 mm x 64 mm x 940 mm)
  • 43” Post - Horizontal: 2.5” x 2.5” x 43” (64 mm x 64 mm x 1.09 m)
  • 53” Post – Stair (cut-to-length): 2.5” x 2.5” x 53” (64 mm x 64 mm x 1.35 m)

Aluminium posts can only be used with the Trex Reveal line

Trex Reveal aluminum rail and baluster kit
3. STAIR–Rail Kit w/round or square balusters: Top Rail, Bottom Rail, Round or Square balusters, Mounting & Support Hardware

Includes
  • Top Rail
  • Bottom Rail
  • Square Balusters
  • Mounting & Support Hardware
Actual dimensions
  • 6’ x 36”: 72” x 36” (1.83 m x 914 mm)
  • 8’ x 36”: 96” x 36” (2.44 m x 914 mm)
  • 6’ x 42”: 72” x 42” (1.83 m x 1.07 m)
  • 8’ x 42”: 96” x 42” (2.44 m x 1.07 m)

Available in 6’ or 8’ lengths and 36” or 42” Rail height for horizontal and stair applications.

3. HORIZONTAL – Rail Kit w/round or square balusters: Top Rail, Bottom Rail, Square or Round Balusters, Mounting & Support Hardware

Includes
  • Top Rail
  • Bottom Rail
  • Round Balusters
  • Mounting & Support Hardware
Actual dimensions
  • 6’ x 36”: 72” x 36” (1.83 m x 914 mm)
  • 8’ x 36”: 96” x 36” (2.44 m x 914 mm)
  • 6’ x 42”: 72” x 42” (1.83 m x 1.07 m)
  • 8’ x 42”: 96” x 42” (2.44 m x 1.07 m)

Available in 6’ or 8’ lengths and 36” or 42” Rail height for horizontal and stair applications.

Fixed Bracket (4-Pack) – Horizontal
Includes
  • Qty (2) Fixed Top Rail Bracket and Cover–Horizontal
  • Qty (2) Fixed Bottom Rail Bracket and Cover–Horizontal
  • Qty (1) Fastener Pack
Fixed Bracket (4-Pack) – Stair
Includes
  • Qty (1) Fixed Top Rail Bracket 1 and Cover–Stair
  • Qty (1) Fixed Top Rail Bracket 2 and Cover–Stair
  • Qty (1) Fixed Bottom Rail Bracket 1 and Cover–Stair
  • Qty (1) Fixed Bottom Rail Bracket 2 and Cover–Stair
  • Qty (1) Fastener Pack
Swivel Crossover Bracket Kit – Stair
Includes
  • Qty (1) Swivel Crossover Bracket–Stair
  • Qty (2) Post to Bracket Fasteners
Swivel Bracket – Horizontal
Includes
  • Qty (1) Swivel Top Rail Bracket and Cover–Horizontal
  • Qty (1) Swivel Bottom Rail Bracket and Cover–Horizontal
  • Qty (2) Fastener Covers
  • Qty (1) Fastener Pack
Swivel Bracket – Stair
Includes
  • Qty (1) Swivel Top Rail Bracket and Cover–Stair
  • Qty (1) Swivel Bottom Rail Bracket and Cover–Stair
  • Qty (2) Fastener Covers
  • Qty (1) Fastener Pack
Compound Swivel Bracket – Stair
Includes
  • Qty (1) Compound Swivel Top Rail Bracket and Cover–Stair
  • Qty (1) Compound Swivel Bottom Rail Bracket and Cover–Stair
  • Qty (2) Fastener Covers
  • Qty (1) Fastener Pack
Aluminium Footblock
Includes
  • Qty (1) Footblock
  • Qty (1) Footblock Anchor and fastener
